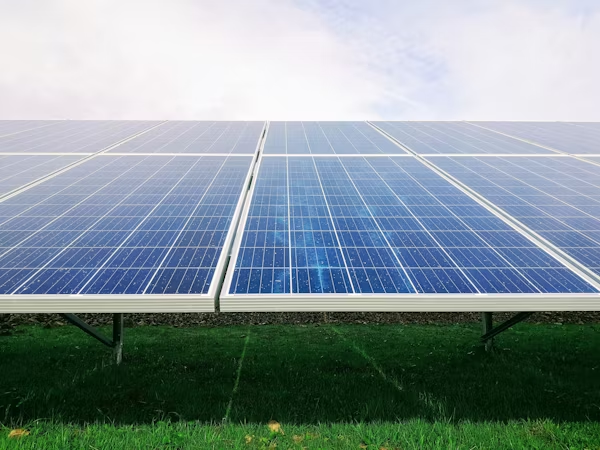

Solar Ground Mounting Solutions

Reliable and durable ground mounting solutions for efficient solar energy generation.

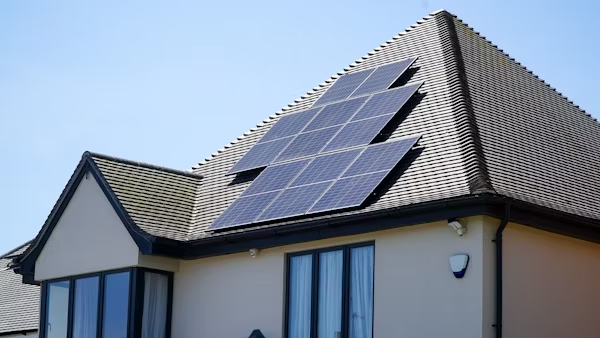

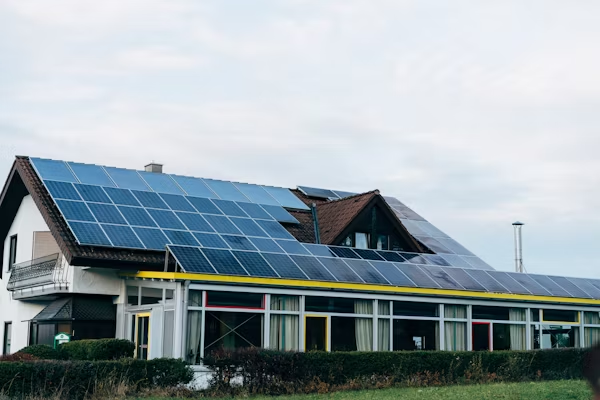

SOLAR ROOF TOP MOUNTING SOLUTION

Smart and sturdy rooftop mounting solutions for seamless solar panel installation and performance.

SSMT-CP (SHED-ROOF)

Durable shed-roof mounting solution designed for optimal solar panel alignment and long-lasting performance.

SOLAR GROUND MOUNTING SOLUTIONS SSMT (FIX)

Features
  • Double post optional for larger span and bigger array.
  • Ramming posts saves the additional excavation works.
  • Significant savings by pile-driven machine with fast piling..
  • Single post system allows for easy maintenance.
Application : Open Terrain, Land Fill
  • Tilt Angle : Up to 30°
  • Clearance : On request
  • Distance between footings : Depending on load condition
Material
  • Anodized aluminum 6005 T6 stainless steel 304,410
  • Hot dipped Galvanized steel E250 Grade

SOLAR ROOF TOP MOUNTING SOLUTION SSMT-LOW ELEVATED

Features
  • Fixed angle or adjustable angle as per customer requirement.
  • Pre-assembled components simplified installation
  • Fast Installation with simple modular system on Commercial Roof.
  • Roof surface can be protected with low additional loads.
  • Compact delivery saves logistics cost and easy for upload.
Application : Open Terrain, Land Fill
  • Tilt Angle : Up to 23° (Other angle on request)
  • Building Height : Up to 10m
  • Recommended Wind Speed : 150 km/hr(Max)
  • Module Orientation : Portrait
Material
  • Hot dipped Galvanized steel E250 Grade

SSMT-CP (SHED-ROOF)

Features
  • No need to provide roofing.
  • Solar panel carport does not require separate, dedicated, land, but rather makes use of an existing area and enhances its value.
Application : Open Terrain, Land Fill
  • Tilt Angle : Recommended below 25°
  • Distance between footing : Minimum 3000 mm
  • Recommended Wind Speed : 120 km/hr Module Orientation : Landscape , Portrait
Material
  • Anodized aluminum 6005 T6 stainless steel 304,410
  • Hot dipped Galvanized steel E250 Grade
